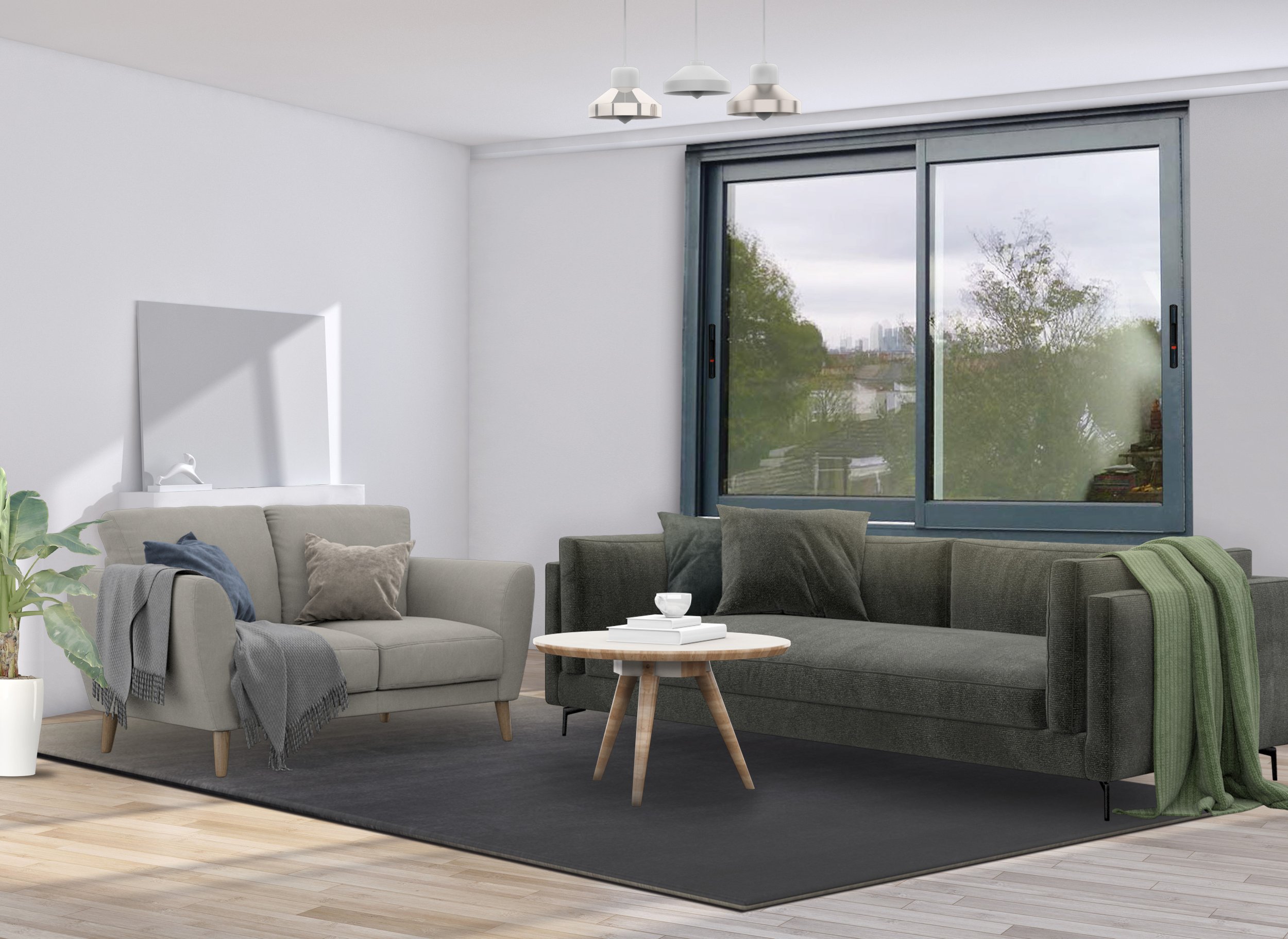

Introducing our sliding system, SW29! The basic series offers a wide range of creative designs. Featuring the option for multi-point locking, enhances security and functionality. Moreover, with the use of slim profiles, our design ensures maximum natural light floods the interior of your house. The fabrication process, which excludes bonding and reduces the number of individual components, ensures a simpler, faster, and more reliable production of the system.
SW29 Configurations





Sightlines
Face width / Outer frame 29 mm
Face width / Vent profile 55 mm
Face width of system 79 mm
Min. Face width of interlocking section 30mm
Min. system basic depth 110mm
Max. system basic depth 150mm
Glazing thickness 6-26mm

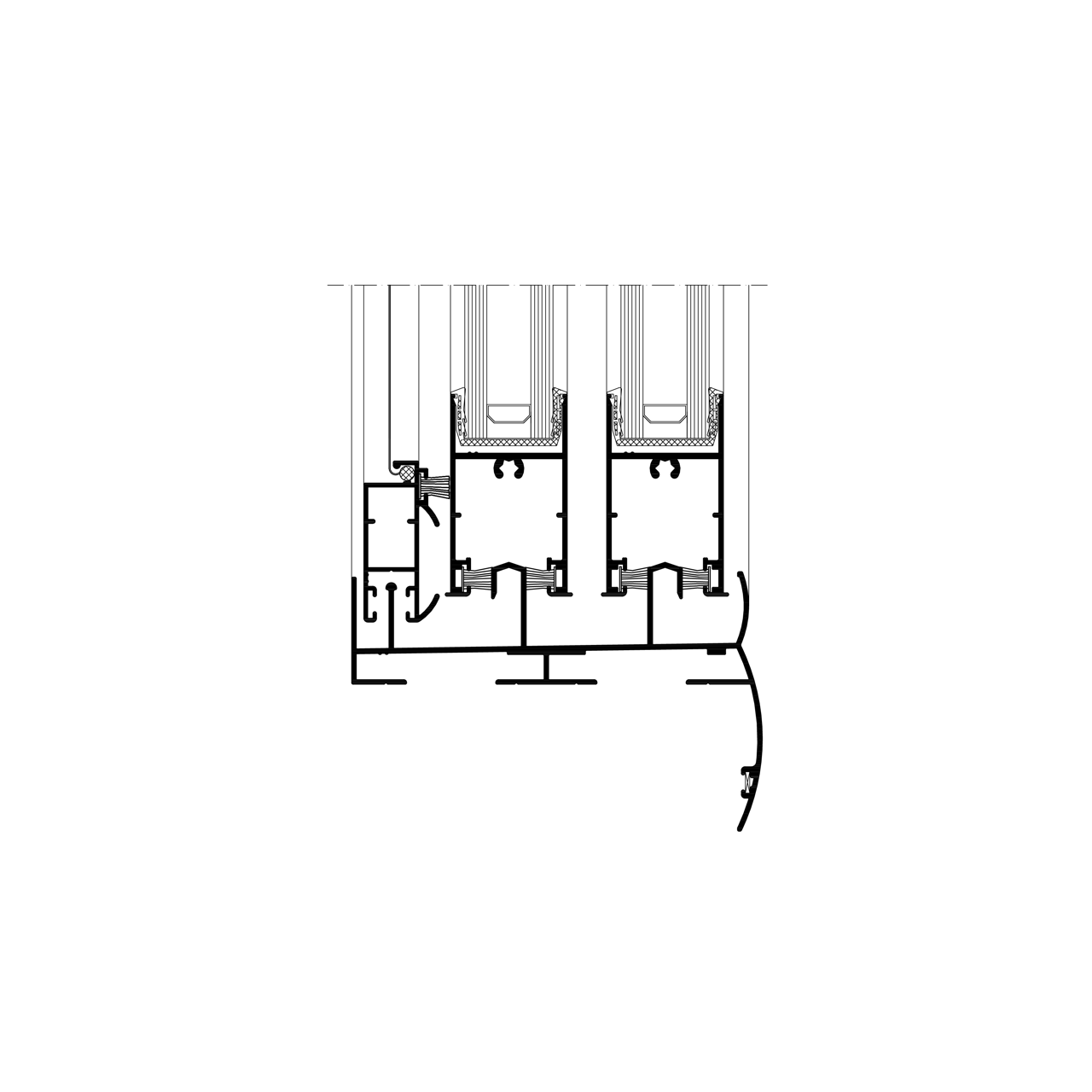

Profile Section
